All products

PE96HI doors Procural

No items found

PE96HI Door Procural

Aluminium entrance door for passive houses with multi-chamber profile · Procural

Uf from 0.8 W/(m²·K) Ud from 0.7 W/(m²·K) 5 air chambers + HI thermal chamber Security class RC3, RC4 Delivery across Latvia and Europe
0.8
Uf W/(m²·K)
frame coefficient
0.7
Ud W/(m²·K)
door coefficient
96 mm
frame
depth
58 mm
thermal insert
RC3/RC4
security
class
About the PE96HI Door Procural system

PE96HI Door Procural is a multi-chamber aluminium profile system with a 96 mm depth and a closed HI thermal chamber — the warmest door system in the Procural range. The finished door's thermal transmittance Ud starts from 0.7 W/(m²·K) — the system is designed for entrance areas of passive houses and buildings with maximum requirements for thermal insulation.

Thermal insulation is provided by a wide, 58 mm thermal insert, a closed HI thermal chamber, and multi-contour sealing around the perimeter of the leaf. The profile is manufactured from EN AW-6060 T66 aluminium alloy, and the door leaf is reinforced and built for intensive use in the entrance areas of private homes and premium commercial buildings.

Logi24 manufactures and installs PE96HI Door Procural doors at its own production facility in Riga, with delivery and installation across Latvia and Europe.

Photos

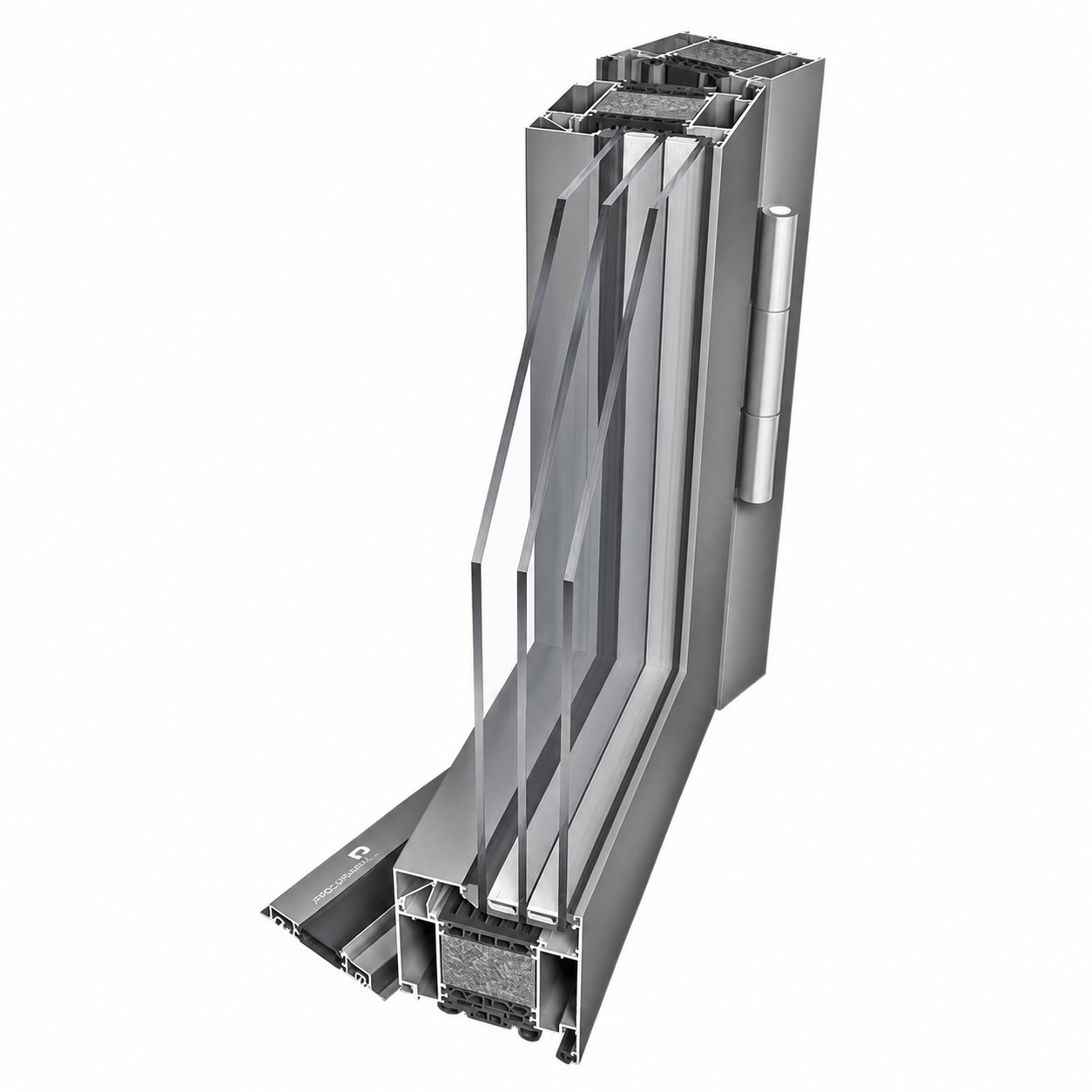

PE96HI Door Procural — photo 🔍 Enlarge

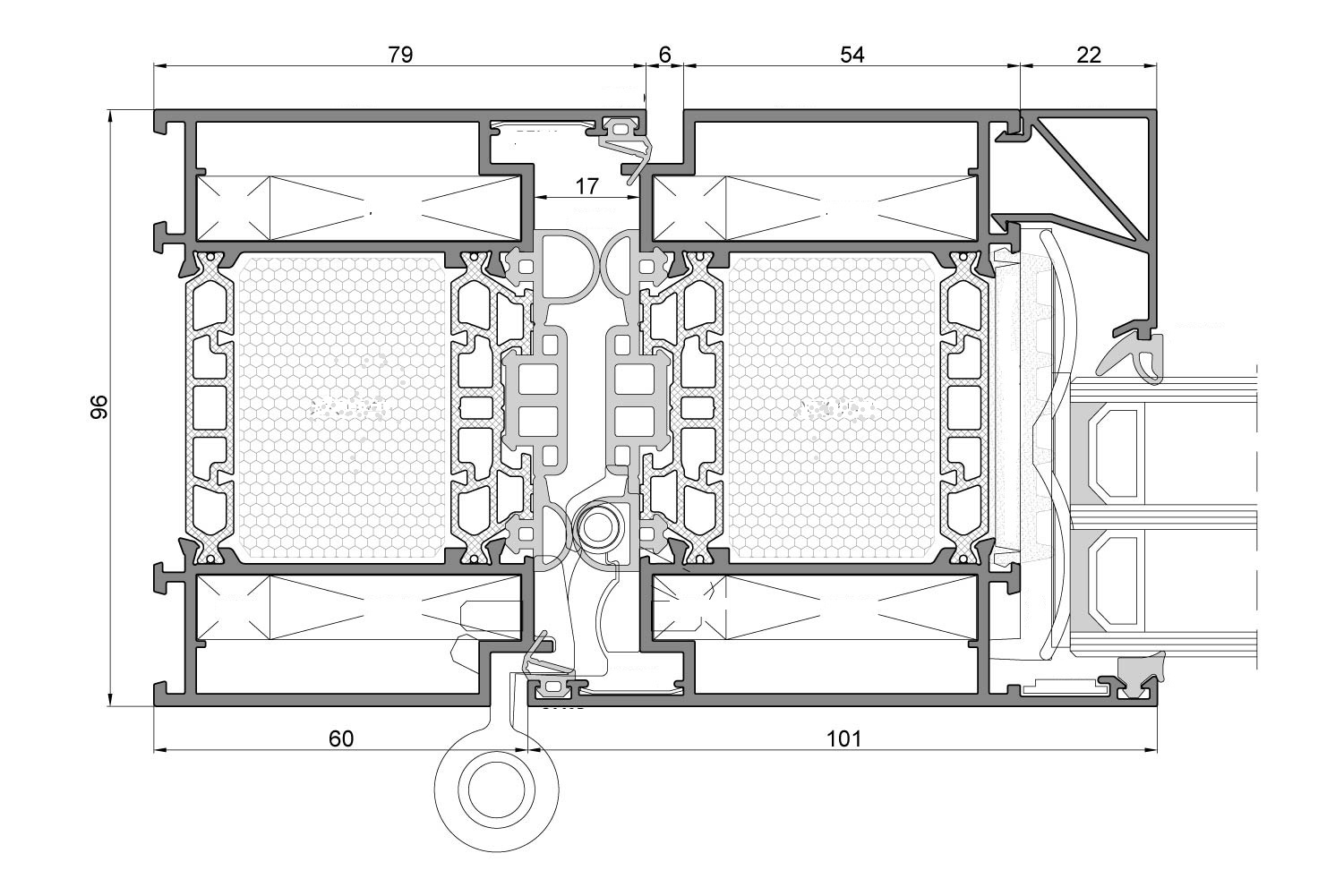

PE96HI Door Procural — cross-section of the frame and leaf profile 🔍 Enlarge

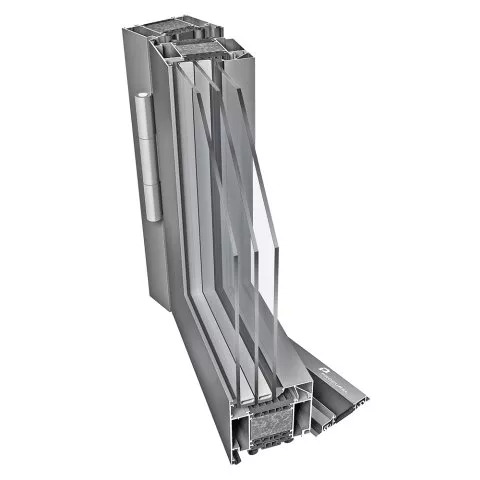

PE96HI Door Procural — profile corner joint 🔍 Enlarge

Click a photo to enlarge

Technical specifications
Thermal insulation and profile
Profile system Procural PE96HI, multi-chamber
Frame depth 96 mm
Leaf depth 96 mm
Number of air chambers 5 + closed HI thermal chamber
Thermal insert (thermal break) 58 mm
Profile thermal transmittance Uf from 0.8 W/(m²·K)
Door thermal transmittance Ud from 0.7 W/(m²·K)
Leaf fill increased-thickness sandwich panel or triple glazing
The final Ud value depends on the leaf size, fill type, hardware configuration, and threshold of the specific project. The figures shown apply to a standard single-leaf door of 1000×2100 mm with an opaque, increased-thickness insulated fill. For standard and elevated thermal insulation requirements without passive-house parameters, the PE78NHI Door system is available (42 mm thermal insert). Exact figures for your project are calculated by a Logi24 manager.
Configuration, testing, and finish
Profile material aluminium EN AW-6060, T66 temper
Seals synthetic EPDM rubber, multi-contour sealing
Locking mechanism multi-point, with option for electronic access control
Burglary resistance class RC3, RC4
Threshold thermally insulated, including a barrier-free option
Profile finish Qualicoat powder coating
Anodising on request, Qualanod standard
Colour RAL catalogue, two-tone finish, wood-effect finish
Key advantages
Maximum thermal insulation

The 58 mm thermal insert and closed HI thermal chamber deliver one of the lowest Ud values among Procural door systems.

Designed for passive houses

The profile suits entrance areas of energy-efficient and passive houses, where minimising heat loss through every part of the building envelope matters.

High burglary resistance

Burglary resistance class RC3, RC4 and a multi-point locking mechanism provide enhanced security for premium entrance areas.

Thermally insulated threshold

A dedicated threshold design reduces heat loss at the most vulnerable point of the door construction.

Durable finish

Qualicoat powder coating protects the profile from corrosion and colour fading under constant rain, salt, and UV exposure.

Where it is used
PE96HI Door Procural is used in entrance areas of passive and energy-efficient private homes, premium commercial buildings, and building renovations with maximum requirements for thermal insulation and burglary resistance RC3, RC4. The system is well suited to single- and double-leaf entrance doors with an opaque insulated fill or triple glazing. See the full range under Procural Doors, and other profile solutions in the Aluminium Windows and Doors category. For the window version for passive houses, see PE96 Passive Procural. For standard and elevated thermal insulation requirements for an entrance area without passive-house parameters, we recommend PE78NHI Door Procural, and for compact entrances — PE68HI Door Procural.
Who it's for
  • Owners of passive and energy-efficient private homes
  • Clients of premium commercial buildings
  • Architects and designers of energy-efficient buildings
  • Clients with maximum requirements for thermal insulation and burglary protection
Design and configuration options
  • Single-leaf doors
  • Double-leaf doors (with active and passive leaf)
  • Doors with a fixed side-light glazing panel
  • Fill with an insulated sandwich panel or triple glazing
  • Thermally insulated or barrier-free threshold
  • Custom opening dimensions
Colour options
  • RAL catalogue finish — any colour
  • Two-tone finish (exterior/interior)
  • Qualicoat powder coating
  • Qualanod anodising on request
  • Wood-effect finish
Installation, delivery, and warranty

Installation. Logi24 carries out the full process — from on-site measurement to final installation. The installation team fits the constructions with proper temperature and installation joints and precise adjustment of the locking mechanism, preserving the stated thermal performance and correct door operation. Manufacturing and installation timelines depend on order volume and configuration and are calculated individually by the manager when the order is placed.

Delivery. Logi24's production facility and office are located in Riga, Latvia. From here we deliver and install PE96HI Door Procural doors in Riga and across Latvia, and we also arrange delivery for projects in other European countries. Timelines and logistics costs are calculated individually depending on the project's location.

Warranty. Logi24 provides a 2-year warranty on installation work and 5 years on the finished door construction. The Procural PE96HI profile carries the manufacturer's warranty of up to 30 years; the exact term is confirmed by the manager when the order is placed.

Why choose Logi24
In-house production

The entire process — from quotation to installation — is carried out by a single team with no subcontractors.

Based in Riga, Latvia

Short timelines for approvals and site visits across the whole country.

Operating across Europe

We deliver and install PE96HI Door Procural doors outside Latvia as well.

Questions and answers
  • What is PE96HI Door Procural? +
    It is a multi-chamber aluminium profile system with a 96 mm depth and a 58 mm thermal insert with a closed HI thermal chamber, designed for entrance doors in passive houses and buildings with maximum thermal insulation requirements.
  • What is the thermal transmittance of the profile and of the finished door? +
    The profile's thermal transmittance Uf starts from 0.8 W/(m²·K), and the finished door's Ud starts from 0.7 W/(m²·K). The exact value depends on the leaf size, fill type, and hardware configuration.
  • How does PE96HI Door differ from the PE78NHI Door system? +
    PE96HI Door has a greater frame depth (96 mm versus 78 mm for PE78NHI Door) and a wider thermal insert (58 mm versus 42 mm), which gives a noticeably lower Ud and makes the system suitable for passive house projects, while PE78NHI Door is designed for standard and elevated thermal insulation requirements.
  • Is PE96HI Door suitable for certified passive houses? +
    The system is designed with the energy-efficiency requirements of passive houses in mind and suits projects that need to minimise heat loss through the entrance area. Compliance with the specific certification criteria of a project is confirmed individually with the designer and a Logi24 manager.
  • What buildings is PE96HI Door suitable for? +
    The system is suitable for entrance areas of passive and energy-efficient private houses, premium commercial buildings, and building renovations with maximum requirements for thermal insulation and burglary protection.
  • How much do PE96HI Door Procural doors cost? +
    The price depends on the leaf dimensions, fill type, hardware configuration, and order volume, so it is calculated individually by a Logi24 manager. Submit a request with your opening dimensions — we will prepare a quote for your project.
  • How long does manufacturing take? +
    Manufacturing time depends on the configuration, leaf dimensions, and current production workload, and is confirmed by the manager when the order is placed. For doors with non-standard dimensions, colour, or fill, the timeline may be longer than standard.
  • Does Logi24 also handle door installation? +
    Yes, Logi24 carries out the full cycle — measurement, manufacturing, and installation with its own team in Riga and across Latvia, as well as delivery and installation across Europe for relevant projects.
  • What warranty is provided on PE96HI Door Procural doors? +
    Logi24's standard terms are 2 years' warranty on installation work, 5 years on the finished door construction, and up to 30 years on the profile itself under the manufacturer's warranty, depending on operating conditions.
  • How do I place an order for PE96HI Door Procural doors? +
    Submit a request on the website or contact a Logi24 manager — a specialist will confirm your opening dimensions, help you choose the fill and hardware, and prepare an individual cost and manufacturing timeline estimate.
Detailed overview of PE96HI Door Procural

In brief: PE96HI Door Procural is a multi-chamber aluminium profile system from manufacturer Procural, 96 mm deep, with a 58 mm wide thermal insert and a closed HI thermal chamber. The profile's thermal transmittance Uf starts from 0.8 W/(m²·K), and the finished door's Ud starts from 0.7 W/(m²·K) (for a standard single-leaf door of 1000×2100 mm with an opaque, increased-thickness insulated fill). In Latvia, doors based on this system are manufactured and installed by Logi24, with production in Riga.

PE96HI Door is the warmest door system in the Procural range: a 96 mm frame depth and a 58 mm thermal insert are greater than those of PE78NHI Door (78 mm and 42 mm respectively) and the compact PE68HI Door (68 mm and 32 mm). This makes the system suitable for entrance areas of passive and energy-efficient homes, where heat loss through the building envelope is subject to elevated requirements.

The profile is supplemented with a closed HI thermal chamber, and the threshold is built in a thermally insulated version — together these elements reduce heat loss at the most vulnerable points of the door construction. The leaf fill can be either an opaque, increased-thickness insulated sandwich panel or triple glazing.

The PE96HI Door Procural profile is manufactured from EN AW-6060 aluminium alloy in T66 temper and has a burglary resistance class of RC3, RC4 under EN 1627. The system is used in entrance areas of passive and energy-efficient private homes, premium commercial buildings, and building renovations with maximum thermal insulation requirements.

Logi24 manufactures and installs PE96HI Door Procural doors at its own production facility in Riga, Latvia, and handles delivery and installation across Latvia and Europe. Logi24 provides a 2-year warranty on installation work, 5 years on the door construction, and up to 30 years on the PE96HI Door Procural profile under the manufacturer's warranty.

© Logi24  ·  PE96HI Door Procural  ·  Specifications may be refined according to the profile manufacturer's data. Please check with Logi24 specialists for up-to-date information.
