PE68HI Door Procural
PE68HI Procural Door
Compact aluminium entrance door with enhanced thermal insulation and three-chamber profile · Procural

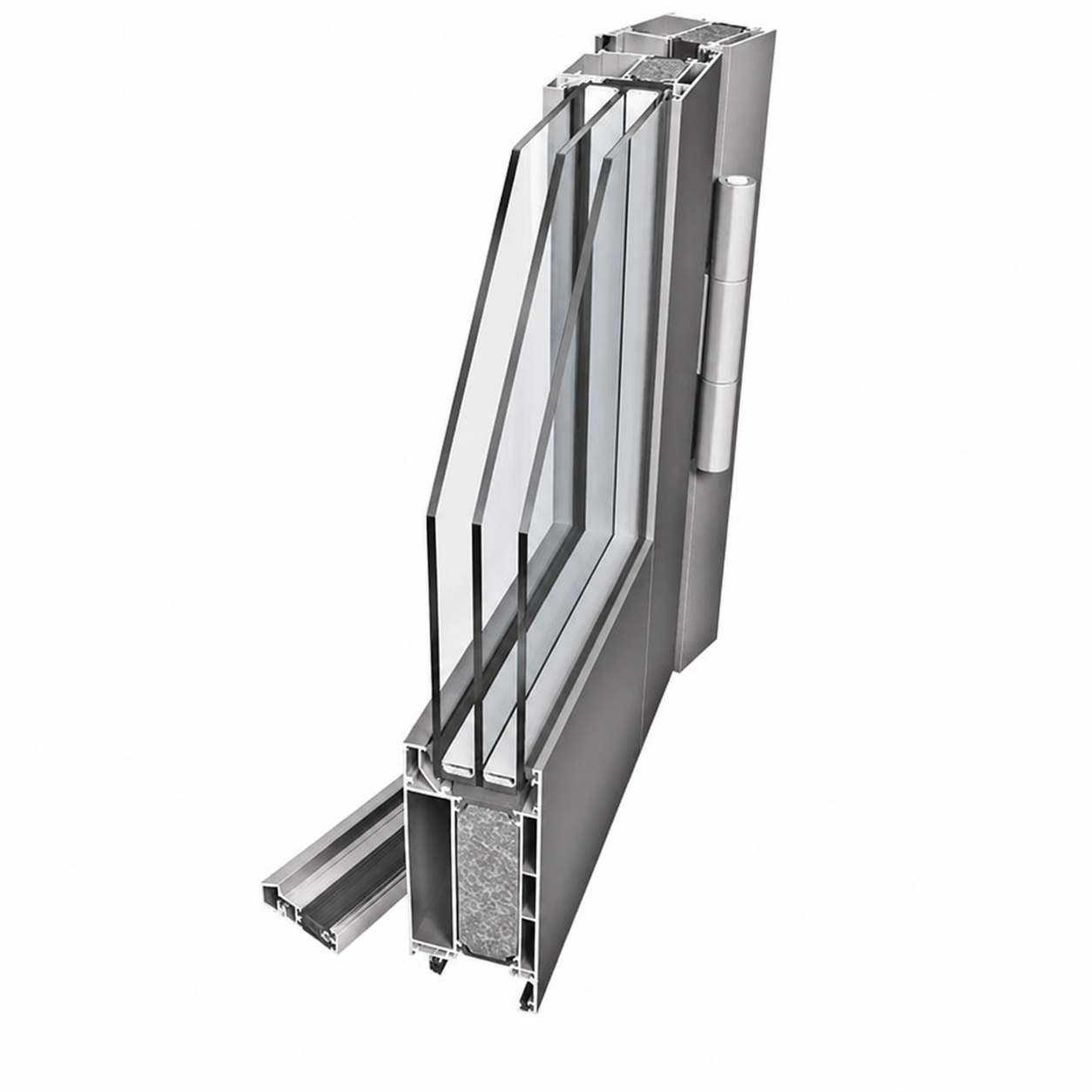

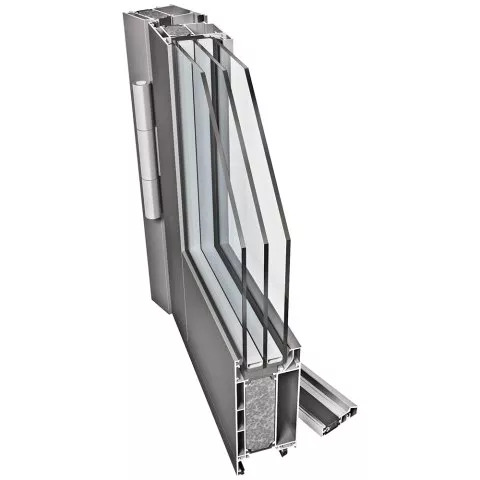

PE68HI Procural Door is a three-chamber aluminium profile system with a 68 mm depth and an additional closed HI thermal chamber — the most compact door system in the Procural range. The finished door's thermal transmittance Ud starts from 1.1 W/(m²·K) — the system is built for entrance areas where a compact profile, reasonable cost, and thermal insulation enhanced over the base version matter.
Thermal insulation is provided by a 32 mm wide thermal insert, a closed HI thermal chamber, and multi-contour sealing around the perimeter of the leaf. The profile is manufactured from EN AW-6060 T66 aluminium alloy, and the door leaf is built for the regular use of entrance areas in private homes, balcony and terrace doors, and small commercial buildings.
Logi24 manufactures and installs PE68HI Procural doors at its own production facility in Riga, with delivery and installation across Latvia and Europe.
🔍 Enlarge
🔍 Enlarge
🔍 EnlargeClick a photo to enlarge

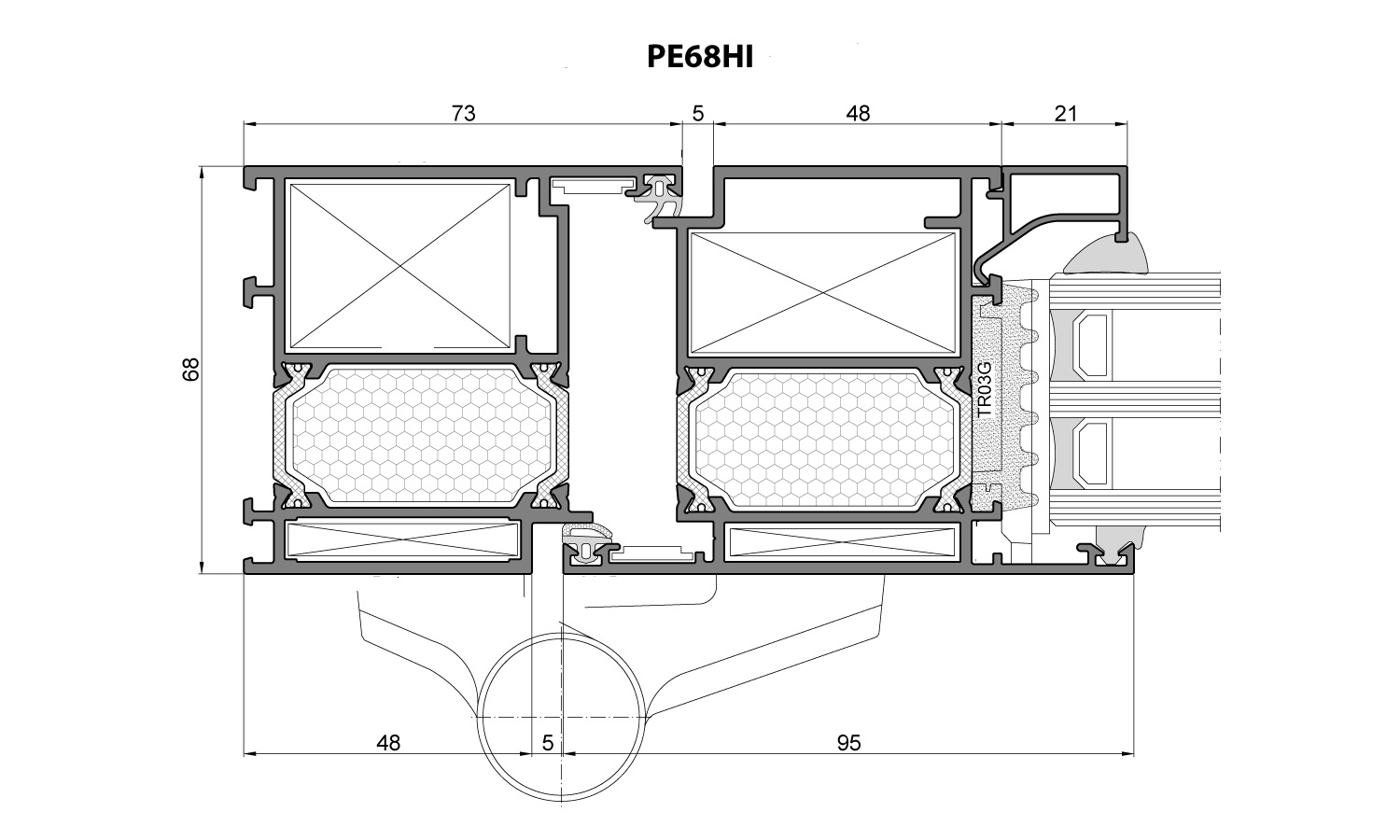

| Profile system | Procural PE68HI, three-chamber |
| Frame depth | 68 mm |
| Leaf depth | 76 mm |
| Number of air chambers | 3 + closed HI thermal chamber |
| Thermal insert (thermal break) | 32 mm |
| Profile thermal transmittance Uf | from 1.4 W/(m²·K) |
| Door thermal transmittance Ud | from 1.1 W/(m²·K) |
| Leaf fill | sandwich panel or glazing, 18 to 52 mm thick |
| Profile material | aluminium EN AW-6060, T66 temper |
| Seals | synthetic EPDM rubber, multi-contour sealing |
| Locking mechanism | multi-point, with option for electronic access control |
| Burglary resistance | class RC3, RC4 |
| Threshold | standard or low, including a barrier-free option |
| Profile finish | Qualicoat powder coating |
| Anodising | on request, Qualanod standard |
| Colour | RAL catalogue, two-tone finish, wood-effect finish |
A 68 mm frame depth combined with a closed HI thermal chamber gives a noticeably lower Ud compared with the base PE68 version of the same depth.
Burglary resistance class RC3, RC4 and a multi-point locking mechanism provide enhanced security for entrance areas.
A smaller profile depth compared with PE78NHI Door makes the system more affordable where maximum thermal insulation isn't required.
Qualicoat powder coating protects the profile from corrosion and colour fading under constant rain, salt, and UV exposure.
The leaf can be fitted with either an opaque insulated sandwich panel or glazing, matching the architectural and functional needs of the project.
- Private clients with a limited budget for the entrance area
- Owners of balconies and terraces looking for a compact door system
- Developers and contractors delivering standard-design projects
- Homeowners with burglary protection requirements
- Single-leaf doors
- Double-leaf doors (with active and passive leaf)
- Doors with a fixed side-light glazing panel
- Fill with a sandwich panel or glazing
- Standard or barrier-free threshold
- Custom opening dimensions
- RAL catalogue finish — any colour
- Two-tone finish (exterior/interior)
- Qualicoat powder coating
- Qualanod anodising on request
- Wood-effect finish
Installation. Logi24 carries out the full process — from on-site measurement to final installation. The installation team fits the constructions with proper temperature and installation joints and precise adjustment of the locking mechanism, preserving the stated thermal performance and correct door operation. Manufacturing and installation timelines depend on order volume and configuration and are calculated individually by the manager when the order is placed.
Delivery. Logi24's production facility and office are located in Riga, Latvia. From here we deliver and install PE68HI Procural doors in Riga and across Latvia, and we also arrange delivery for projects in other European countries. Timelines and logistics costs are calculated individually depending on the project's location.
Warranty. Logi24 provides a 2-year warranty on installation work and 5 years on the finished door construction. The Procural PE68HI profile carries the manufacturer's warranty of up to 30 years; the exact term is confirmed by the manager when the order is placed.
The entire process — from quotation to installation — is carried out by a single team with no subcontractors.
Short timelines for approvals and site visits across the whole country.
We deliver and install PE68HI Procural doors outside Latvia as well.
-
What is PE68HI Procural Door?It is a three-chamber aluminium profile system with a 68 mm depth, a 32 mm thermal insert, and an additional closed HI thermal chamber, designed for compact entrance and interior doors in private and commercial buildings with elevated thermal insulation requirements.
-
What is the thermal transmittance of the profile and of the finished door?The profile's thermal transmittance Uf starts from 1.4 W/(m²·K), and the finished door's Ud starts from 1.1 W/(m²·K). The exact value depends on the leaf size, fill type (glazing or sandwich panel), and hardware configuration.
-
How does the PE68HI Door differ from the base PE68 Door version?The HI version has a closed sub-glazing/sub-panel chamber and an additional insulation insert, which reduces Uf from 1.8 to 1.4 W/(m²·K) and Ud from 1.4 to 1.1 W/(m²·K). The base version suits projects where profile compactness and affordable cost matter, while PE68HI is for when higher thermal insulation of the entrance area is needed.
-
How does the PE68HI Door differ from the PE78NHI Door system?PE68HI Door has a smaller frame depth (68 mm versus 78 mm for PE78NHI Door) and a narrower thermal insert (32 mm versus 42 mm), making it a more compact and economical solution, while PE78NHI Door provides higher thermal insulation and suits large-format entrance areas.
-
What buildings is PE68HI Door suitable for?The system is well suited to entrance areas of private homes, balcony and terrace doors, building renovations, and small commercial buildings where a compact profile, reasonable price, and enhanced thermal insulation matter.
-
How much do PE68HI Procural doors cost?The price depends on the leaf dimensions, fill type, hardware configuration, and order volume, so it is calculated individually by a Logi24 manager. Submit a request with your opening dimensions — we will prepare a quote for your project.
-
How long does manufacturing take?Manufacturing time depends on the configuration, leaf dimensions, and current production workload, and is confirmed by the manager when the order is placed. For doors with non-standard dimensions, colour, or fill, the timeline may be longer than standard.
-
Does Logi24 also handle door installation?Yes, Logi24 carries out the full cycle — measurement, manufacturing, and installation with its own team in Riga and across Latvia, as well as delivery and installation across Europe for relevant projects.
-
What warranty is provided on PE68HI Procural doors?Logi24's standard terms are 2 years' warranty on installation work, 5 years on the finished door construction, and up to 30 years on the profile itself under the manufacturer's warranty, depending on operating conditions.
-
How do I place an order for PE68HI Procural doors?Submit a request on the website or contact a Logi24 manager — a specialist will confirm your opening dimensions, help you choose the fill and hardware, and prepare an individual cost and manufacturing timeline estimate.
In brief: PE68HI Procural Door is a three-chamber aluminium profile system from manufacturer Procural, 68 mm deep, with a 32 mm wide thermal insert and an additional closed HI thermal chamber. The profile's thermal transmittance Uf starts from 1.4 W/(m²·K), and the finished door's Ud starts from 1.1 W/(m²·K) (for a standard single-leaf door of 1000×2100 mm with an opaque insulated fill). In Latvia, doors based on this system are manufactured and installed by Logi24, with production in Riga.
PE68HI is the most compact door system in the Procural range: a 68 mm frame depth is smaller than PE78NHI Door's (78 mm). Compared with the base PE68 Door version, the closed HI thermal chamber reduces Uf from 1.8 to 1.4 W/(m²·K) and Ud from 1.4 to 1.1 W/(m²·K), while keeping a compact profile geometry and affordable cost.
By burglary resistance class, PE68HI Door is rated RC3, RC4 under EN 1627, achieved through a multi-point locking mechanism and a reinforced leaf construction. The fill can be either an opaque insulated sandwich panel or glazing, and the threshold is available in standard or barrier-free versions.
The PE68HI Procural Door profile is manufactured from EN AW-6060 aluminium alloy in T66 temper. The system is used for entrance areas of private homes, balcony and terrace doors, building renovations, and small commercial buildings where the maximum thermal insulation of the deeper PE78NHI Door system isn't required.
Logi24 manufactures and installs PE68HI Procural doors at its own production facility in Riga, Latvia, and handles delivery and installation across Latvia and Europe. Logi24 provides a 2-year warranty on installation work, 5 years on the door construction, and up to 30 years on the PE68HI Procural profile under the manufacturer's warranty.
