PE78N Procural

No items found

PE78N Procural Door

Aluminium entrance door with three-chamber profile · Procural

Uf from 2.1 W/(m²·K) Ud from 1.1 W/(m²·K) 3 air chambers Security class RC2, RC3 Delivery across Latvia and Europe
2.1
Uf W/(m²·K)
frame coefficient
1.1
Ud W/(m²·K)
door coefficient
78 mm
frame
depth
42 mm
thermal insert
3
air
chambers
About the PE78N Procural Door system

PE78N Procural Door is a three-chamber aluminium profile system with a 78 mm depth for entrance, balcony, and terrace doors. The finished door's thermal transmittance Ud starts from 1.1 W/(m²·K) — a solid baseline figure for the entrance area of a private home or commercial building.

Thermal insulation is provided by a multi-chamber thermal insert 42 mm wide and a two-component central EPDM seal. The profile is manufactured from EN AW-6060 T66 aluminium alloy and is built for the intensive use of an entrance area, and its compatibility with windows and curtain walls in the PE78N range allows a unified facade in a single design.

Logi24 manufactures and installs PE78N Procural doors at its own production facility in Riga, with delivery and installation across Latvia and Europe.

Photos

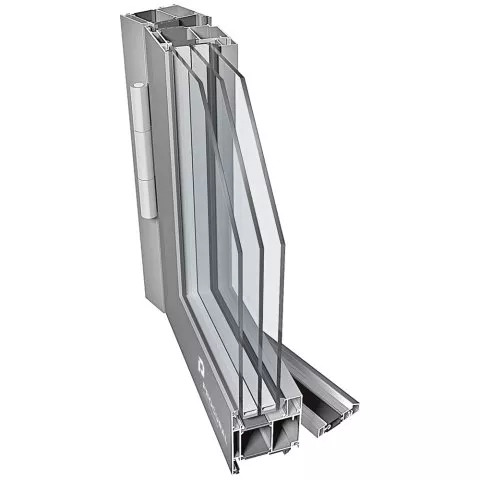

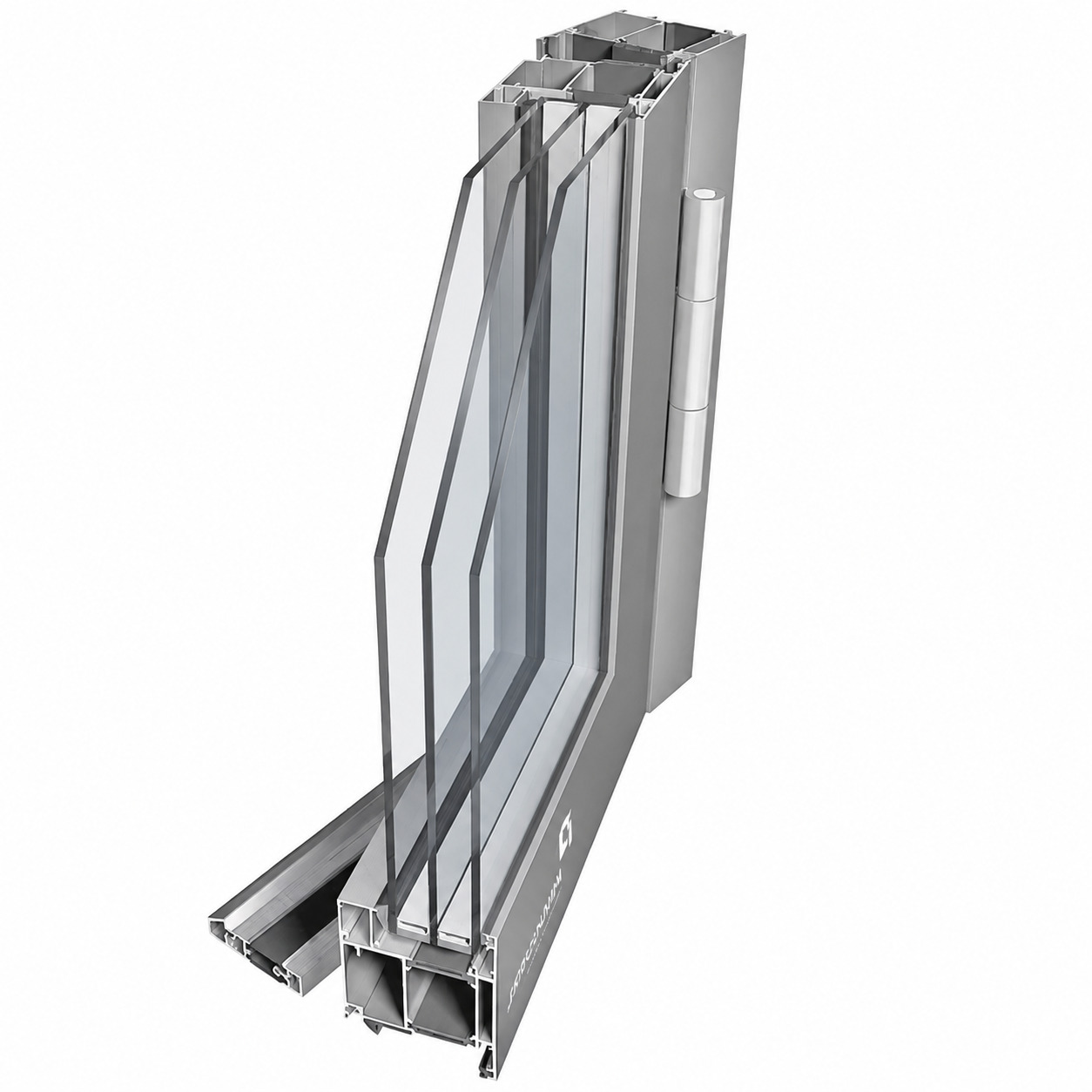

PE78N Procural Door — photo 🔍 Enlarge

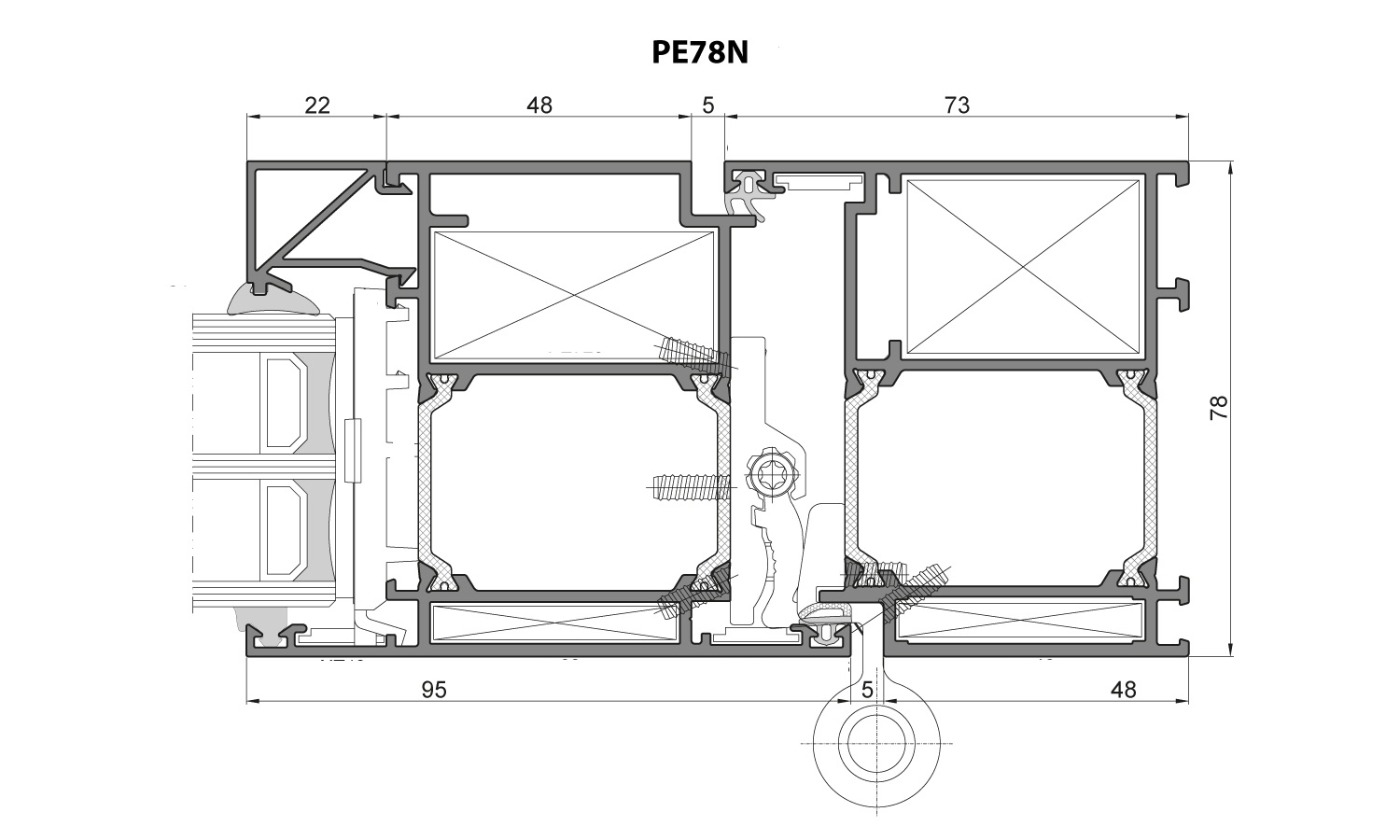

PE78N Procural Door — cross-section of the frame and leaf profile 🔍 Enlarge
PE78N Procural Door — profile corner joint 🔍 Enlarge

Click a photo to enlarge

Technical specifications
Thermal insulation and profile
Profile system Procural PE78N, three-chamber
Frame depth 78 mm
Number of air chambers 3
Thermal insert (thermal break) 42 mm, multi-chamber, two-component seal
Profile thermal transmittance Uf from 2.1 W/(m²·K)
Door thermal transmittance Ud from 1.1 W/(m²·K)
Seals synthetic EPDM rubber
The final Ud value depends on the fill chosen, the door size, and the hardware configuration. The figures shown apply to a door of 1230×2180 mm with double glazing Ug = 0.5 W/(m²·K). For higher thermal insulation requirements, the PE78N HI version is available (Uf from 1.5 W/(m²·K), Ud from 0.93 W/(m²·K)).
Configuration, testing, and finish
Profile material aluminium EN AW-6060, T66 temper
Burglary resistance class RC2, RC3 (with appropriate configuration)
Fill glazing, sandwich panel, or a combination of both
Profile finish Qualicoat powder coating
Anodising on request, Qualanod standard
Colour RAL catalogue, two-tone finish, wood-effect finish
Compatibility unified design with PE78N / PE78N HI windows and curtain walls
Key advantages
Reliable entrance area insulation

The 42 mm thermal insert and two-component seal deliver Ud from 1.1 W/(m²·K) — solid figures for an entrance door.

High burglary resistance

With the appropriate hardware configuration, the door achieves burglary resistance class RC2, RC3 under EN 1627.

Unified design with Procural windows

The door is compatible in profile and colour with PE78N range windows — giving the facade of a home or office a cohesive look.

Flexible fill

Glazing, an opaque sandwich panel, or a combination of both can be installed to suit the specific project.

Option to upgrade to HI

If higher energy efficiency is needed, the same profile geometry is available in the PE78N HI version.

Where it is used
PE78N Procural Door is used as an entrance door for private homes, a balcony and terrace door, and as a door for commercial and public buildings where profile strength, aesthetics, and compatibility with windows of the same design matter. The system suits projects that require burglary resistance class RC2, RC3, and pairs well with large-format glazing and PROCURAL curtain walls. See the full range under Procural Doors, and other profile solutions in the Aluminium Windows and Doors category. The corresponding window system is PE78N Procural, and for higher energy efficiency — PE78N HI Procural.
Who it's for
  • Private clients fitting out a home's entrance area
  • Architects who value a visual connection between windows and doors on the same facade
  • Developers and contractors of commercial buildings
  • Homeowners with burglary protection requirements
Design and configuration options
  • Single-leaf entrance doors
  • Double-leaf doors
  • Balcony and terrace doors
  • Doors with side and top transom lights
  • Combination with PROCURAL windows and curtain walls
  • Custom opening dimensions
Colour options
  • RAL catalogue finish — any colour
  • Two-tone finish (exterior/interior)
  • Qualicoat powder coating
  • Qualanod anodising on request
  • Wood-effect finish
Installation, delivery, and warranty

Installation. Logi24 carries out the full process — from on-site measurement to final installation. The installation team fits the constructions with proper temperature and installation joints, preserving the stated thermal performance. Manufacturing and installation timelines depend on order volume and configuration and are calculated individually by the manager when the order is placed.

Delivery. Logi24's production facility and office are located in Riga, Latvia. From here we deliver and install PE78N Procural doors in Riga and across Latvia, and we also arrange delivery for projects in other European countries. Timelines and logistics costs are calculated individually depending on the project's location.

Warranty. Logi24 provides a 2-year warranty on installation work and 5 years on the finished door construction. The Procural PE78N profile carries the manufacturer's warranty of up to 30 years; the exact term is confirmed by the manager when the order is placed.

Why choose Logi24
In-house production

The entire process — from quotation to installation — is carried out by a single team with no subcontractors.

Based in Riga, Latvia

Short timelines for approvals and site visits across the whole country.

Operating across Europe

We deliver and install PE78N Procural doors outside Latvia as well.

Questions and answers
  • What is PE78N Procural Door? +
    It is a three-chamber aluminium profile system with a 78 mm depth and a 42 mm thermal insert, designed for entrance and balcony doors in private homes and commercial buildings.
  • What is the thermal transmittance of the PE78N door? +
    The profile's thermal transmittance Uf starts from 2.1 W/(m²·K), and the finished door's Ud starts from 1.1 W/(m²·K) with double glazing. The exact value depends on the door size and the fill chosen.
  • How does the PE78N door differ from the PE78N HI version? +
    The HI version uses an additional insulation insert, which reduces Uf from 2.1 to 1.5 W/(m²·K) and Ud from 1.1 to 0.93 W/(m²·K). The base PE78N suits projects where maximum thermal insulation of the entrance area is not required.
  • Can I order an entrance door and windows based on the same Procural system? +
    Yes, PE78N doors are compatible in design and colour with PE78N and PE78N HI windows, allowing you to build a unified facade from windows, doors, and curtain walls on a single profile platform.
  • What burglary resistance do PE78N doors have? +
    Doors based on PE78N achieve burglary resistance class RC2, RC3 under EN 1627 with the appropriate hardware and glazing configuration, providing reliable protection for the entrance area.
  • How much does a PE78N Procural entrance door cost? +
    The price depends on the dimensions, configuration, fill type, and hardware, so it is calculated individually by a Logi24 manager. Submit a request with your opening dimensions — we will prepare a quote for your project.
  • How long does manufacturing take? +
    Manufacturing time depends on the configuration, dimensions, and current production workload, and is confirmed by the manager when the order is placed. For projects with non-standard dimensions or colour, the timeline may be longer than standard.
  • Does Logi24 also handle door installation? +
    Yes, Logi24 carries out the full cycle — measurement, manufacturing, and installation with its own team in Riga and across Latvia, as well as delivery and installation across Europe for relevant projects.
  • What warranty is provided on the PE78N Procural door? +
    Logi24's standard terms are 2 years' warranty on installation work, 5 years on the finished door construction, and up to 30 years on the profile itself under the manufacturer's warranty, depending on operating conditions.
  • How do I place an order for the PE78N Procural door? +
    Submit a request on the website or contact a Logi24 manager — a specialist will confirm your opening dimensions, help you choose the configuration, and prepare an individual cost and manufacturing timeline estimate.
Detailed overview of PE78N Procural Door

In brief: PE78N Procural Door is a three-chamber aluminium profile system from manufacturer Procural, 78 mm deep, with a 42 mm wide thermal insert, designed for entrance and balcony doors. The profile's thermal transmittance Uf starts from 2.1 W/(m²·K), and the finished door's Ud starts from 1.1 W/(m²·K) (for a door of 1230×2180 mm with double glazing Ug = 0.5 W/(m²·K)). In Latvia, doors based on this system are manufactured and installed by Logi24, with production in Riga.

The PE78N door profile uses the same geometry and 42 mm thermal insert as the window system of the same name, PE78N, so the doors can be combined with PROCURAL windows and curtain walls in a unified facade design and colour. This simplifies the design of an entrance area where visual consistency across all glazing elements matters.

Based on the same profile is the warmer PE78N HI version with an additional insulation insert: it reduces Uf to 1.5 W/(m²·K) and Ud to 0.93 W/(m²·K). This architecture allows the door's insulation level to be chosen to suit the specific project without changing the base profile and hardware geometry.

The PE78N Procural door is manufactured from EN AW-6060 aluminium alloy in T66 temper and, with the appropriate hardware configuration, achieves burglary resistance class RC2, RC3 under EN 1627. The system is used as an entrance door for private homes, a balcony and terrace door, and in facade solutions for commercial and public buildings.

Logi24 manufactures and installs PE78N Procural doors at its own production facility in Riga, Latvia, and handles delivery and installation across Latvia and Europe. Logi24 provides a 2-year warranty on installation work, 5 years on the door construction, and up to 30 years on the PE78N Procural profile under the manufacturer's warranty.

© Logi24  ·  PE78N Procural Door  ·  Specifications may be refined according to the profile manufacturer's data. Please check with Logi24 specialists for up-to-date information.
