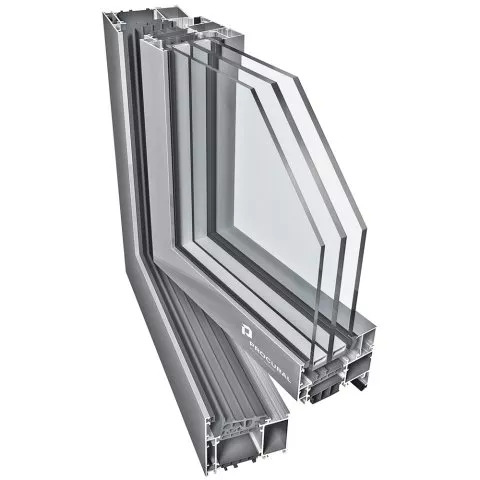

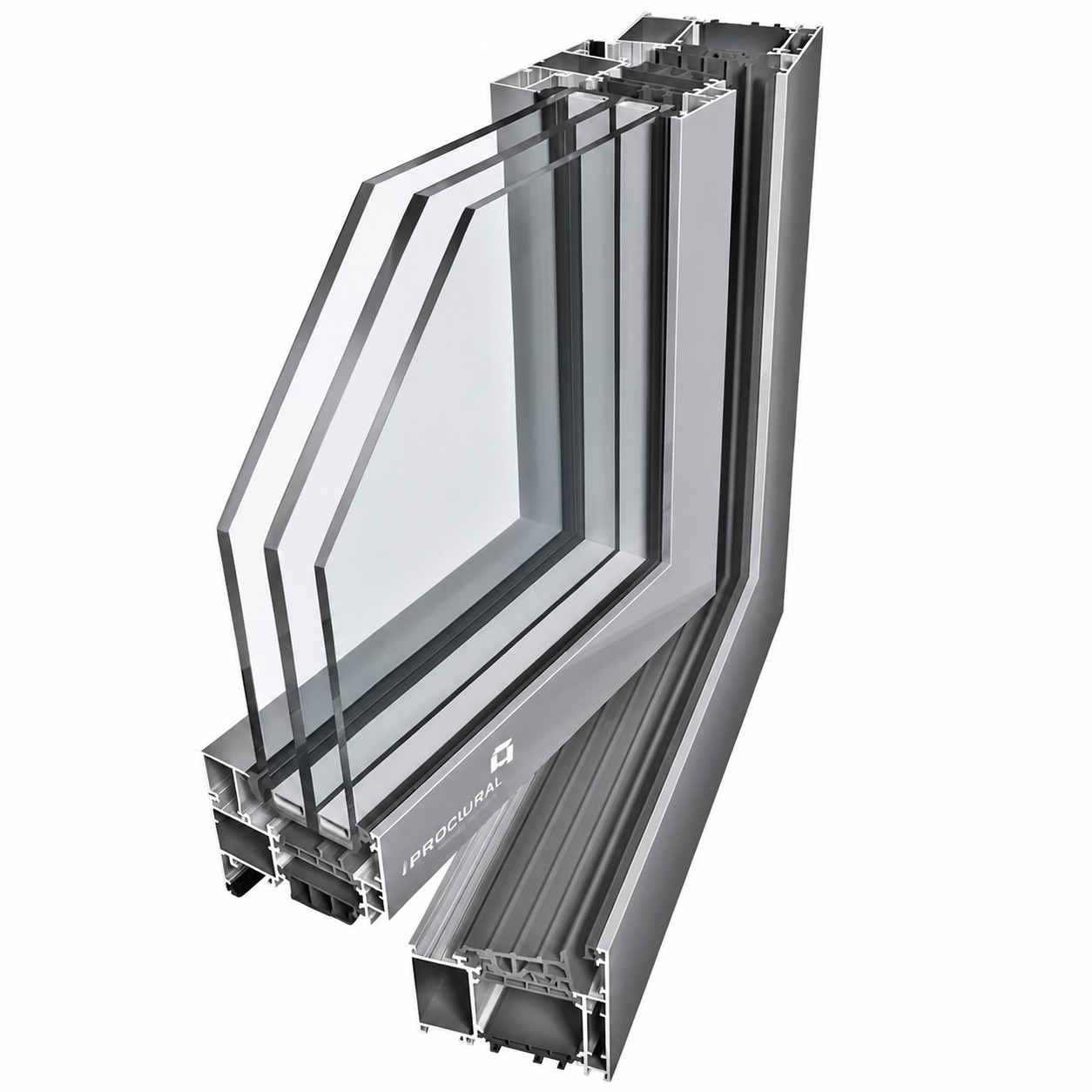

Aluminium window system with a three-chamber profile · Procural
PE78N Procural is a three-chamber aluminium profile system with a 78 mm frame depth — the base version of the PE78N range. The heat transfer coefficient of the finished window, Uw, starts from 0.88 W/(m²·K) — the system is designed for projects where a passive-house level of thermal insulation is not required, but structural strength and a wide range of configuration options are important.
Thermal insulation is provided by a 42 mm multi-chamber thermal break and a two-component central EPDM gasket. The profile is manufactured from EN AW-6060 T66 aluminium alloy and supports large-format sashes weighing up to 200 kg, making the system suitable for both private homes and commercial projects.
Logi24 manufactures and installs PE78N Procural windows at its own production facility in Riga, with delivery and installation across Latvia and Europe.
🔍 Enlarge
🔍 Enlarge
🔍 EnlargeClick a photo to enlarge
| Profile system | Procural PE78N, three-chamber |
| Frame depth | 78 mm |
| Sash depth | 86 mm |
| Number of air chambers | 3 |
| Thermal break (insulating barrier) | 42 mm, multi-chamber, two-component gasket |
| Profile heat transfer coefficient Uf | from 1.7 W/(m²·K) |
| Window heat transfer coefficient Uw | from 0.88 W/(m²·K) |
| Maximum sash size | 1700 × 2200 mm or 1300 × 3000 mm |
| Maximum sash weight | up to 200 kg |
| Profile material | EN AW-6060 aluminium alloy, T66 temper |
| Gaskets | EPDM synthetic rubber |
| Air permeability | class 4 |
| Watertightness | class E1650 |
| Wind load resistance | class C5 |
| Burglar resistance | class RC2, RC3 |
| Profile coating | Qualicoat powder coating |
| Anodising | on request, Qualanod standard |
| Colour | RAL catalogue, dual-colour option, wood-effect finish |
The 42 mm thermal break and two-component gasket deliver dependable Uw figures from 0.88 W/(m²·K) for everyday projects.
The profile supports sashes weighing up to 200 kg and sized up to 1700×2200 mm — suitable for curtain walls and panoramic windows.
Burglar-resistance class RC2, RC3 to EN 1627 provides added security for private and commercial projects.
Qualicoat powder coating protects the profile from corrosion and colour fading under constant rain, salt and UV exposure.
If higher energy efficiency is needed, the same profile geometry is available in the PE78N HI version with a closed glazing-rebate chamber.
- Private clients building or renovating a home with no passive-standard requirements
- Architects and designers who need large-format glazing
- Developers and contractors of commercial projects
- Homeowners with elevated burglar-protection requirements
- Single-sash windows
- Two- and multi-sash windows
- Fixed (non-opening) glazing
- Tilt-and-turn sashes
- Combination with PROCURAL doors and curtain walls
- Custom opening dimensions
- RAL catalogue colours — any shade
- Dual-colour finish (exterior/interior)
- Qualicoat powder coating
- Qualanod anodising on request
- Wood-effect finish
Installation. Logi24 carries out the full cycle of work — from on-site measurement to final installation. Our installation team fits the windows in line with proper expansion and installation joints, preserving the stated thermal performance. Manufacturing and installation lead times depend on order volume and configuration and are calculated individually by the manager placing the order.
Delivery. Logi24's production facility and office are located in Riga, Latvia. From here we deliver and install PE78N Procural windows in Riga and throughout Latvia, and we also arrange delivery for projects elsewhere in Europe. Logistics timelines and costs are calculated individually depending on the project's location.
Warranty. Logi24 provides a 2-year warranty on installation work and a 5-year warranty on the finished window construction. The Procural PE78N profile itself carries a manufacturer's warranty of up to 30 years; the exact term is confirmed by the manager when the order is placed.
The entire process — from quotation to installation — is handled by a single team, with no subcontractors.
Short lead times for consultations and site visits across the country.
We deliver and install PE78N Procural windows beyond Latvia as well.
-
What is PE78N Procural?It is a three-chamber aluminium profile system with a 78 mm frame depth and a 42 mm multi-chamber thermal break, designed for windows in private homes and commercial projects with good thermal insulation.
-
What is the heat transfer coefficient of the profile and of the finished window?The profile's heat transfer coefficient Uf starts from 1.7 W/(m²·K), while the finished window's Uw is from 0.88 W/(m²·K) with a double-glazed unit. The exact value depends on the window size and the glazing chosen.
-
How does PE78N differ from the PE78N HI version?The HI version has a closed glazing-rebate chamber and an additional insulating insert, which lowers Uf from 1.7 to 0.9 W/(m²·K) and Uw from 0.88 to 0.74 W/(m²·K). The base PE78N suits projects where thermal-insulation requirements are less strict, while PE78N HI is intended for projects with enhanced energy efficiency.
-
What kind of projects is PE78N suitable for?The system suits private houses, building renovations and commercial projects where a passive-house level of thermal insulation is not required, but profile strength and a wide range of configuration options are important.
-
How much do PE78N Procural windows cost?The price depends on dimensions, configuration, glazing type and order volume, so it is calculated individually by a Logi24 manager. Submit a request with your opening dimensions and we will prepare a quote for your project.
-
How long does manufacturing take?Manufacturing time depends on the configuration, dimensions and current production workload, and is confirmed by the manager when the order is placed. For projects with non-standard sizes or colours, lead time may be longer than standard.
-
Does Logi24 handle window installation?Yes, Logi24 carries out the full cycle — measurement, manufacturing and installation with its own team in Riga and throughout Latvia, as well as delivery and installation across Europe for relevant projects.
-
What warranty is provided on PE78N Procural windows?Logi24's standard terms are 2 years' warranty on installation work, 5 years on the finished window construction, and up to 30 years on the profile itself under the manufacturer's warranty, depending on operating conditions.
-
How do I order PE78N Procural windows?Submit a request on the website or contact a Logi24 manager — a specialist will confirm your opening dimensions, help you choose the configuration, and prepare an individual cost and lead-time estimate.
In short: PE78N Procural is a three-chamber aluminium profile system by manufacturer Procural with a 78 mm frame depth and a 42 mm thermal break. The profile's heat transfer coefficient Uf starts from 1.7 W/(m²·K), and the finished window's coefficient Uw starts from 0.88 W/(m²·K) (for a 1480×2180 mm window with a double-glazed unit Ug = 0.5 W/(m²·K)). In Latvia, windows based on this system are manufactured and installed by Logi24, with production based in Riga.
PE78N is the base version of the range, on which warmer profile variants with a closed glazing-rebate chamber and an additional insulating insert are built: PE78N HI (Uf from 0.9 W/(m²·K), Uw from 0.74 W/(m²·K)) and other modifications. This architecture allows thermal insulation to be chosen for the specific project without changing the profile geometry or hardware.
The PE78N Procural profile is manufactured from EN AW-6060 aluminium alloy in T66 temper and supports sashes up to 1700×2200 mm in size and up to 200 kg in weight. The system has air permeability class 4, watertightness E1650, wind-load resistance C5, and burglar resistance RC2, RC3 to EN 1627, extending its application to projects with elevated security requirements.
The PE78N Procural system is used in private houses with no passive-standard requirements, in building renovations, and for panoramic glazing and large curtain walls thanks to the profile's high load-bearing capacity. It suits private clients, architects and developers of commercial projects.
Logi24 manufactures and installs PE78N Procural windows at its own production facility in Riga, Latvia, and provides delivery and installation across Latvia and Europe. Logi24 offers a 2-year warranty on installation work, 5 years on the finished window construction, and up to 30 years on the PE78N Procural profile under the manufacturer's warranty.
