What is PE68 Door Procural?

It is a three-chamber aluminium profile system with a 68 mm depth and a 32 mm thermal insert, designed for compact and economical entrance and interior doors in private and commercial buildings.

What is the thermal transmittance of the profile and of the finished door?

The profile's thermal transmittance Uf starts from 1.8 W/(m²·K), and the finished door's Ud starts from 1.3 W/(m²·K). The exact value depends on the leaf size, fill type (glazing or sandwich panel), and hardware configuration.

How does the PE68 Door differ from the PE68HI Door version?

The HI version has a closed sub-glazing/sub-panel chamber and an additional insulation insert, which reduces Uf from 1.8 to 1.4 W/(m²·K) and Ud from 1.3 to 1.1 W/(m²·K). The base PE68 Door suits projects where profile compactness and affordable cost matter, while PE68HI Door is for when higher thermal insulation of the entrance area is needed.

How does the PE68 Door differ from the PE78NHI Door system?

PE68 Door has a smaller frame depth (68 mm versus 78 mm for PE78NHI Door) and a narrower thermal insert (32 mm versus 42 mm), making it a more compact and economical solution, while PE78NHI Door provides higher thermal insulation and suits large-format entrance areas.

How much do PE68 Procural doors cost?

The price depends on the leaf dimensions, fill type, hardware configuration, and order volume, so it is calculated individually by a Logi24 manager. Submit a request with your opening dimensions — we will prepare a quote for your project.

How long does manufacturing take?

Manufacturing time depends on the configuration, leaf dimensions, and current production workload, and is confirmed by the manager when the order is placed. For doors with non-standard dimensions, colour, or fill, the timeline may be longer than standard.

Does Logi24 also handle door installation?

Yes, Logi24 carries out the full cycle — measurement, manufacturing, and installation with its own team in Riga and across Latvia, as well as delivery and installation across Europe for relevant projects.

What warranty is provided on PE68 Procural doors?

Logi24's standard terms are 2 years' warranty on installation work, 5 years on the finished door construction, and up to 30 years on the profile itself under the manufacturer's warranty, depending on operating conditions.

How do I place an order for PE68 Procural doors?

Submit a request on the website or contact a Logi24 manager — a specialist will confirm your opening dimensions, help you choose the fill and hardware, and prepare an individual cost and manufacturing timeline estimate.

PE68 Procural

Name: PE68 Door Procural
Brand: Procural
Availability: InStock

No items found

1.8

Uf W/(m²·K)
frame coefficient

1.3

Ud W/(m²·K)
door coefficient

68 mm

frame
depth

32 mm

thermal insert

air
chambers

About the PE68 Door Procural system

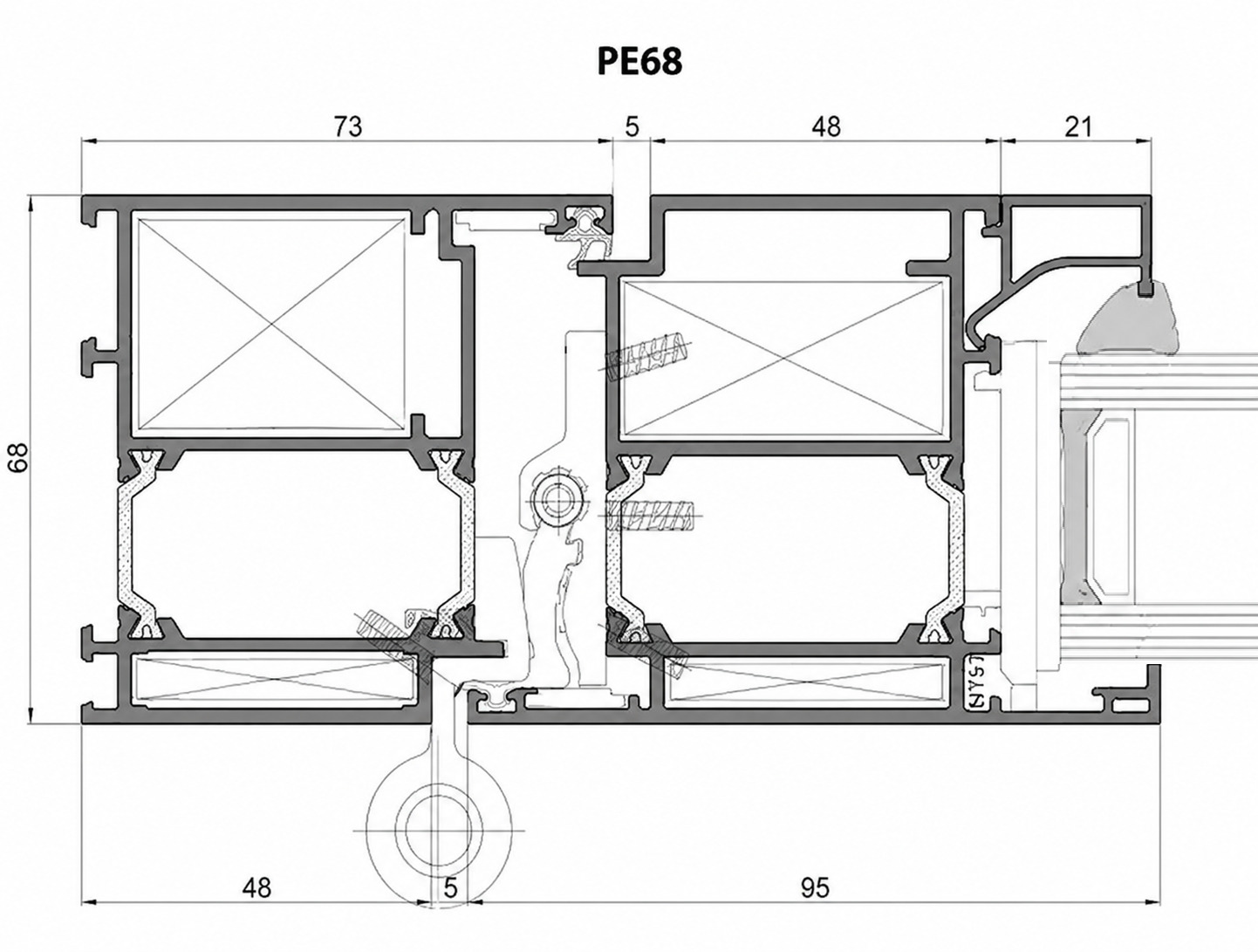

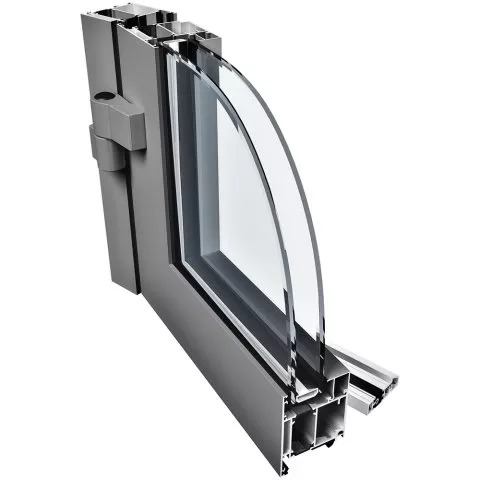

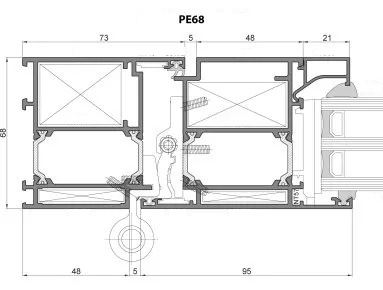

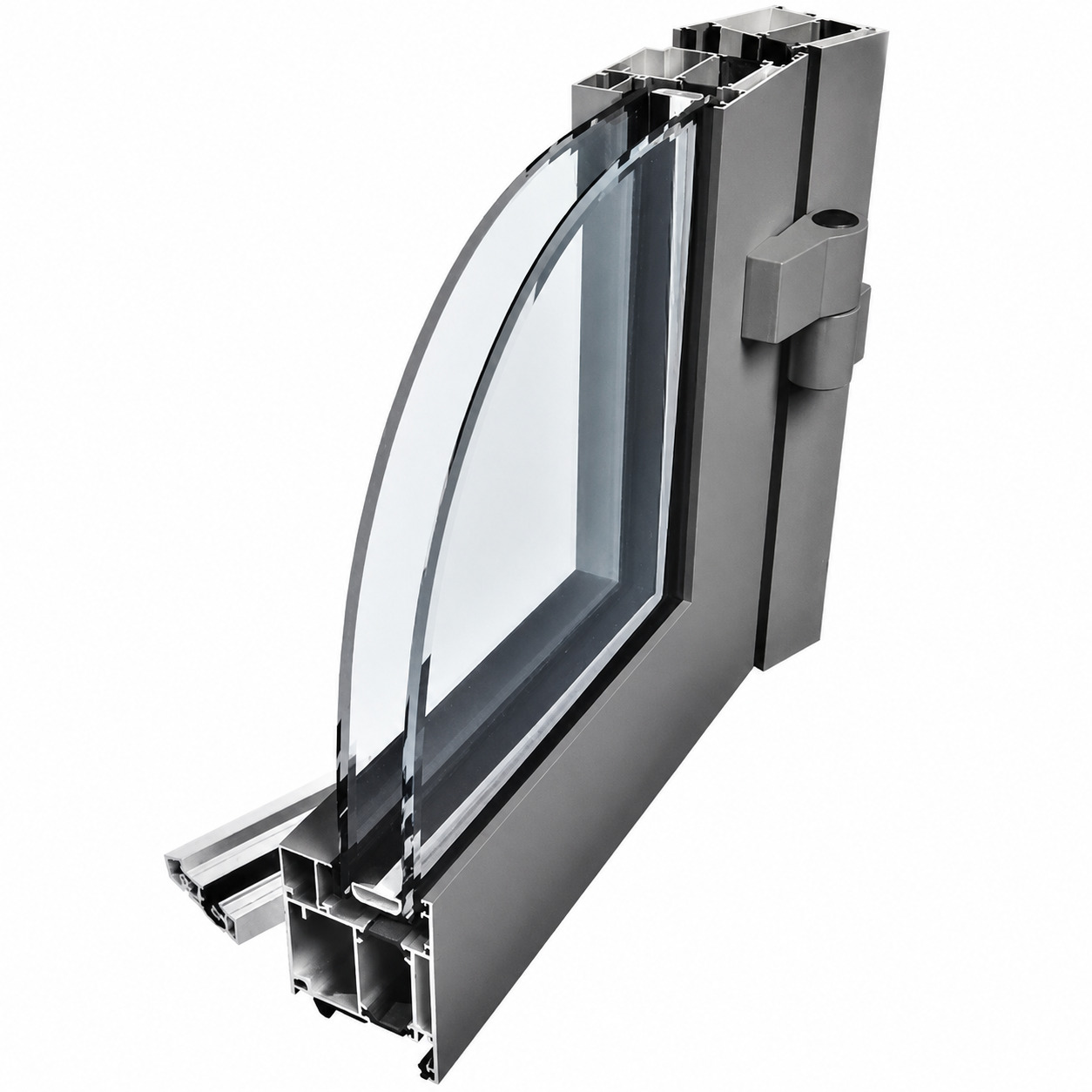

PE68 Door Procural is a three-chamber aluminium profile system with a 68 mm depth — the most compact door system in the Procural range. The finished door's thermal transmittance Ud starts from 1.3 W/(m²·K) — the system is built for entrance areas where reasonable cost, a compact profile, and standard thermal insulation matter.

Thermal insulation is provided by a 32 mm wide thermal insert and multi-contour sealing around the perimeter of the leaf. The profile is manufactured from EN AW-6060 T66 aluminium alloy, and the door leaf is built for the regular use of entrance areas in private homes, balcony and terrace doors, and small commercial buildings.

Logi24 manufactures and installs PE68 Door Procural doors at its own production facility in Riga, with delivery and installation across Latvia and Europe.

Photos

🔍 Enlarge

🔍 Enlarge

🔍 Enlarge

Click a photo to enlarge

Technical specifications

Thermal insulation and profile

Profile system	Procural PE68, three-chamber
Frame depth	68 mm
Leaf depth	76 mm
Number of air chambers	3
Thermal insert (thermal break)	32 mm
Profile thermal transmittance Uf	from 1.8 W/(m²·K)
Door thermal transmittance Ud	from 1.3 W/(m²·K)
Leaf fill	sandwich panel or glazing, 18 to 52 mm thick

The final Ud value depends on the leaf size, fill type (sandwich panel or glazing), hardware configuration, and threshold of the specific project. The figures shown apply to a standard single-leaf door of 1000×2100 mm with an opaque insulated fill. For higher thermal insulation requirements, the PE68HI Door version is available (Uf from 1.4 W/(m²·K), Ud from 1.1 W/(m²·K)). Exact figures for your project are calculated by a Logi24 manager.

Configuration, testing, and finish

Profile material	aluminium EN AW-6060, T66 temper
Seals	synthetic EPDM rubber
Locking mechanism	multi-point, with option for electronic access control
Burglary resistance	class RC2, RC3
Threshold	standard or low, including a barrier-free option
Profile finish	Qualicoat powder coating
Anodising	on request, Qualanod standard
Colour	RAL catalogue, two-tone finish, wood-effect finish

Key advantages

Compact and economical profile

A 68 mm frame depth and an optimised 32 mm thermal insert give a solid balance of cost and thermal insulation for everyday entrance areas.

Reliable burglary protection

Burglary resistance class RC2, RC3 under EN 1627 and a multi-point locking mechanism provide extra security for private and commercial buildings.

Built for regular use

A sturdy leaf and hinge construction withstands frequent opening in private homes, on balconies, and in small commercial entrance areas.

Durable finish

Qualicoat powder coating protects the profile from corrosion and colour fading under constant rain, salt, and UV exposure.

Option to upgrade to HI

If higher energy efficiency is needed, the same profile geometry is available in the PE68HI Door version with a closed thermal chamber.

Where it is used

PE68 Door Procural is used for entrance areas of private homes, balcony and terrace doors, building renovations, and small commercial buildings where a compact profile, reasonable cost, and standard thermal insulation matter, along with burglary resistance class RC2, RC3. The system is well suited to single- and double-leaf entrance doors, as well as doors with an additional fixed side glazing panel. See the full range under Procural Doors, and other profile solutions in the Aluminium Windows and Doors category. See the window version of the same profile under PE68 Procural. For higher energy efficiency, we recommend the PE68HI Door Procural version, and for large-format entrance areas — PE78NHI Door Procural.

Who it's for

Private clients with a limited budget for the entrance area
Owners of balconies and terraces looking for a compact door system
Developers and contractors delivering standard-design projects
Homeowners with burglary protection requirements

Design and configuration options

Single-leaf doors
Double-leaf doors (with active and passive leaf)
Doors with a fixed side-light glazing panel
Fill with a sandwich panel or glazing
Standard or barrier-free threshold
Custom opening dimensions

Colour options

RAL catalogue finish — any colour
Two-tone finish (exterior/interior)
Qualicoat powder coating
Qualanod anodising on request
Wood-effect finish

Installation, delivery, and warranty

Installation. Logi24 carries out the full process — from on-site measurement to final installation. The installation team fits the constructions with proper temperature and installation joints and precise adjustment of the locking mechanism, preserving the stated thermal performance and correct door operation. Manufacturing and installation timelines depend on order volume and configuration and are calculated individually by the manager when the order is placed.

Delivery. Logi24's production facility and office are located in Riga, Latvia. From here we deliver and install PE68 Door Procural doors in Riga and across Latvia, and we also arrange delivery for projects in other European countries. Timelines and logistics costs are calculated individually depending on the project's location.

Warranty. Logi24 provides a 2-year warranty on installation work and 5 years on the finished door construction. The Procural PE68 profile carries the manufacturer's warranty of up to 30 years; the exact term is confirmed by the manager when the order is placed.

Why choose Logi24

In-house production

The entire process — from quotation to installation — is carried out by a single team with no subcontractors.

Based in Riga, Latvia

Short timelines for approvals and site visits across the whole country.

Operating across Europe

We deliver and install PE68 Door Procural doors outside Latvia as well.

Questions and answers

What is PE68 Door Procural? +

It is a three-chamber aluminium profile system with a 68 mm depth and a 32 mm thermal insert, designed for compact and economical entrance and interior doors in private and commercial buildings.
What is the thermal transmittance of the profile and of the finished door? +

The profile's thermal transmittance Uf starts from 1.8 W/(m²·K), and the finished door's Ud starts from 1.3 W/(m²·K). The exact value depends on the leaf size, fill type (glazing or sandwich panel), and hardware configuration.
How does the PE68 Door differ from the PE68HI Door version? +

The HI version has a closed sub-glazing/sub-panel chamber and an additional insulation insert, which reduces Uf from 1.8 to 1.4 W/(m²·K) and Ud from 1.3 to 1.1 W/(m²·K). The base PE68 Door suits projects where profile compactness and affordable cost matter, while PE68HI Door is for when higher thermal insulation of the entrance area is needed.
How does the PE68 Door differ from the PE78NHI Door system? +

PE68 Door has a smaller frame depth (68 mm versus 78 mm for PE78NHI Door) and a narrower thermal insert (32 mm versus 42 mm), making it a more compact and economical solution, while PE78NHI Door provides higher thermal insulation and suits large-format entrance areas.
What buildings is PE68 Door suitable for? +

The system is well suited to entrance areas of private homes, balcony and terrace doors, building renovations, and small commercial buildings where a compact profile, reasonable price, and standard thermal insulation matter.
How much do PE68 Procural doors cost? +

The price depends on the leaf dimensions, fill type, hardware configuration, and order volume, so it is calculated individually by a Logi24 manager. Submit a request with your opening dimensions — we will prepare a quote for your project.
How long does manufacturing take? +

Manufacturing time depends on the configuration, leaf dimensions, and current production workload, and is confirmed by the manager when the order is placed. For doors with non-standard dimensions, colour, or fill, the timeline may be longer than standard.
Does Logi24 also handle door installation? +

Yes, Logi24 carries out the full cycle — measurement, manufacturing, and installation with its own team in Riga and across Latvia, as well as delivery and installation across Europe for relevant projects.
What warranty is provided on PE68 Procural doors? +

Logi24's standard terms are 2 years' warranty on installation work, 5 years on the finished door construction, and up to 30 years on the profile itself under the manufacturer's warranty, depending on operating conditions.
How do I place an order for PE68 Procural doors? +

Submit a request on the website or contact a Logi24 manager — a specialist will confirm your opening dimensions, help you choose the fill and hardware, and prepare an individual cost and manufacturing timeline estimate.

Detailed overview of PE68 Door Procural

In brief: PE68 Door Procural is a three-chamber aluminium profile system from manufacturer Procural, 68 mm deep, with a 32 mm wide thermal insert. The profile's thermal transmittance Uf starts from 1.8 W/(m²·K), and the finished door's Ud starts from 1.3 W/(m²·K) (for a standard single-leaf door of 1000×2100 mm with an opaque insulated fill). In Latvia, doors based on this system are manufactured and installed by Logi24, with production in Riga.

PE68 Door is the most compact door system in the Procural range: a 68 mm frame depth is smaller than PE78NHI Door's (78 mm). This makes the profile an economical solution where maximum thermal insulation isn't required but a reasonable price and compatibility with a wide range of hardware and locking mechanisms matter.

Based on the same profile is the warmer PE68HI Door version with a closed thermal chamber: it reduces Uf to 1.4 W/(m²·K) and Ud to 1.1 W/(m²·K). This architecture allows the insulation level to be chosen to suit the specific project without changing the base profile geometry.

The PE68 Door Procural profile is manufactured from EN AW-6060 aluminium alloy in T66 temper and has a burglary resistance class of RC2, RC3 under EN 1627. The system is used for entrance areas of private homes, balcony and terrace doors, building renovations, and small commercial buildings with standard entrance area requirements.

Logi24 manufactures and installs PE68 Door Procural doors at its own production facility in Riga, Latvia, and handles delivery and installation across Latvia and Europe. Logi24 provides a 2-year warranty on installation work, 5 years on the door construction, and up to 30 years on the PE68 Door Procural profile under the manufacturer's warranty.
